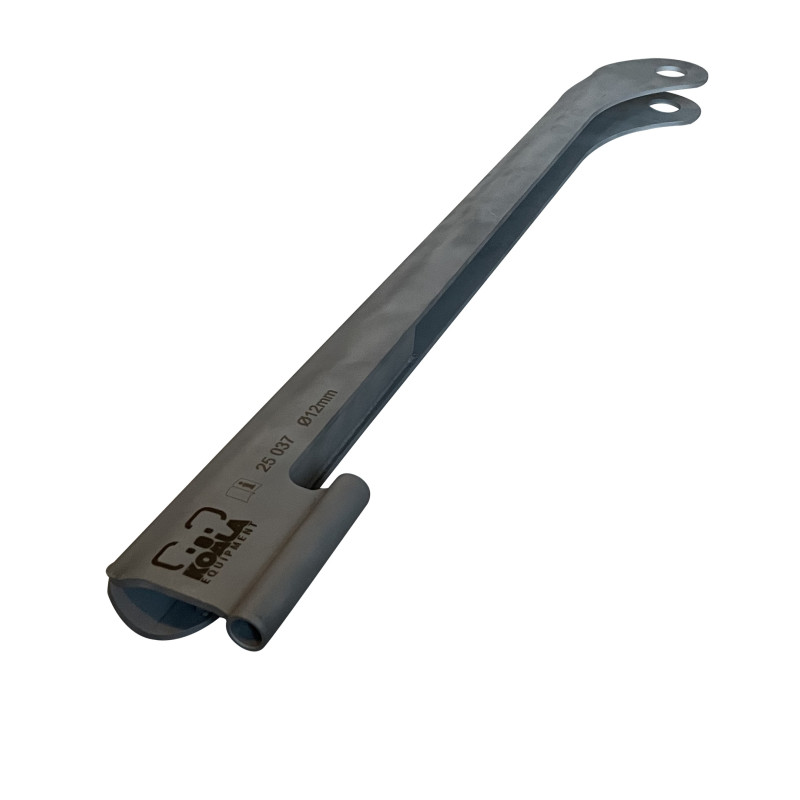

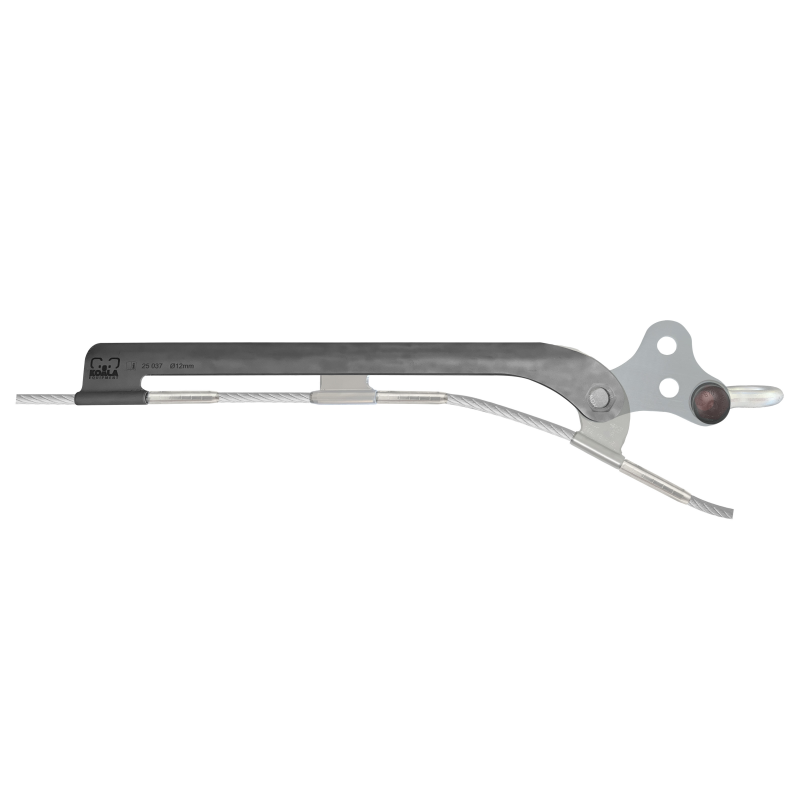

Big arm for zipline

This arm is designed for ziplines more than 150 m long (492ft).

This big arm must be used in combination with a zip line arm (ME76-V2F)

2 big arms + 2 back-ups + 2 arms ME76-V2F required per zipline. Back-ups are mandatory (ME78-F).

The wire rope will be maintained with one 85 mm (3.35 in) ferrules per arm and per back-up.

Tapered ferrule on one side to ensure better fluidity of the continuous belay system.

Made for:

- Galvanized steel wire ropes, 6 x 7 Ø12 mm (0,47 in) textile core, Lang Forming,

- Galvanized steel wire ropes, 19 x 7 Ø12 mm (0,47 in) metallic core, anti-rotating,

- Swaged galvanized steel wire ropes, 6 x 26 Ø12 mm (0,47 in) metallic core.

Fixing method : on a shackle.

Material : stainless steel.

Available for Ø1/2 inch wire ropes, please contact us.

Price per item (without fixing accessories nor ferrules).

 Designed and manufactured in the French Alps.

Link to the installation guide: Click here!
