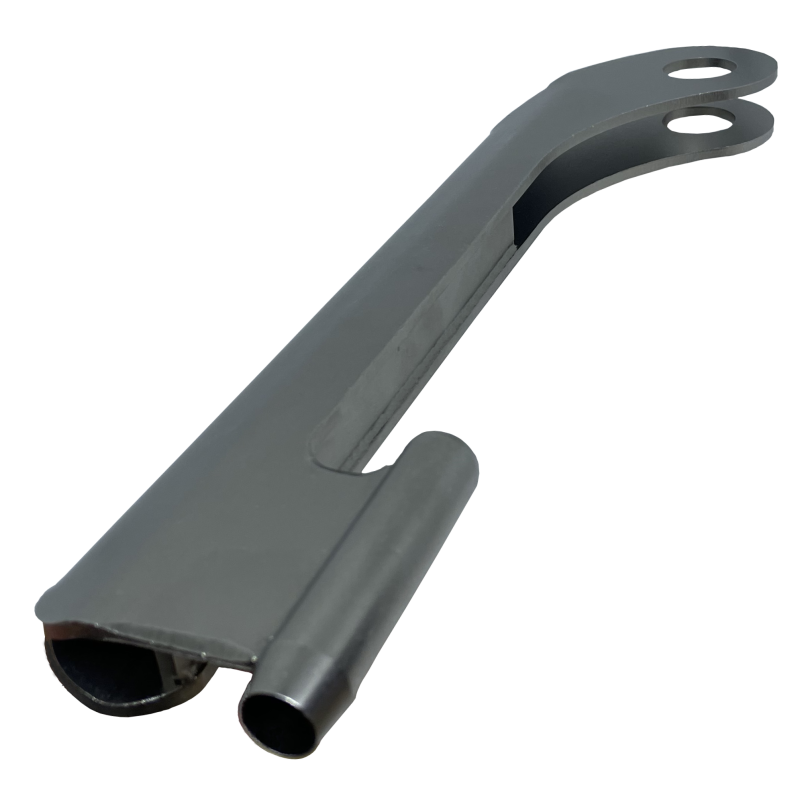

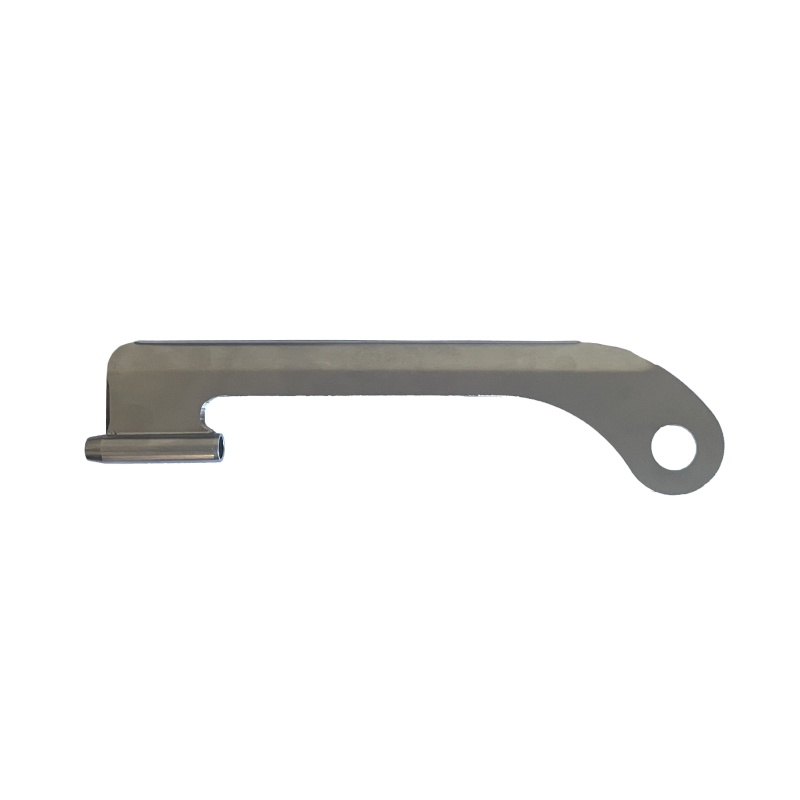

Folded arm for zipline

ME76-F
$119.79

This arm is thicker than the horizontal activity arm and is designed for ziplines up tp 200m long (656 ft).

2 back-ups + 2 folded arms required per zipline. Back-ups are mandatory (ME78-F).

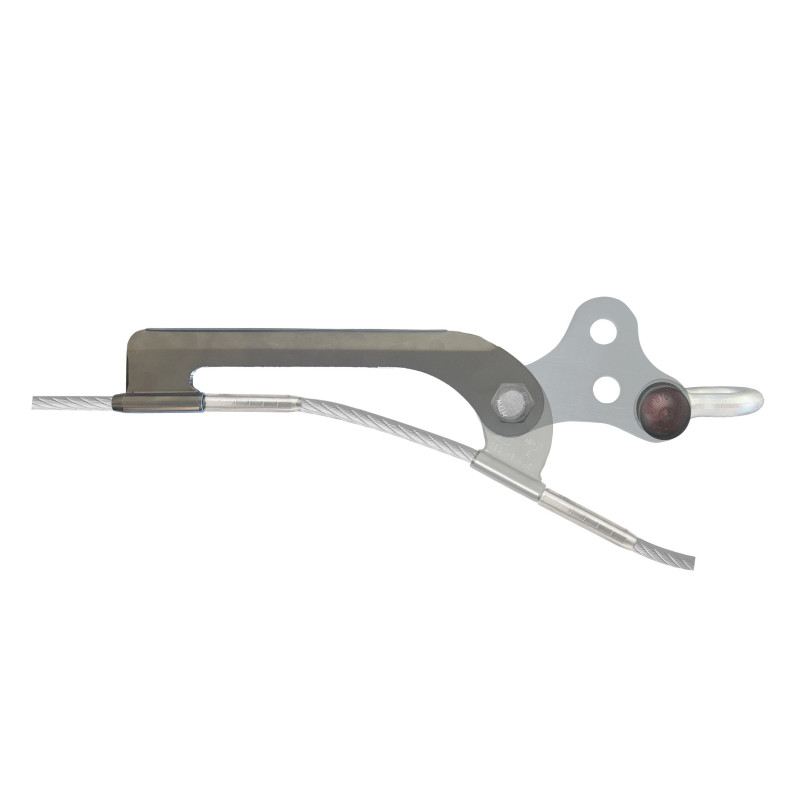

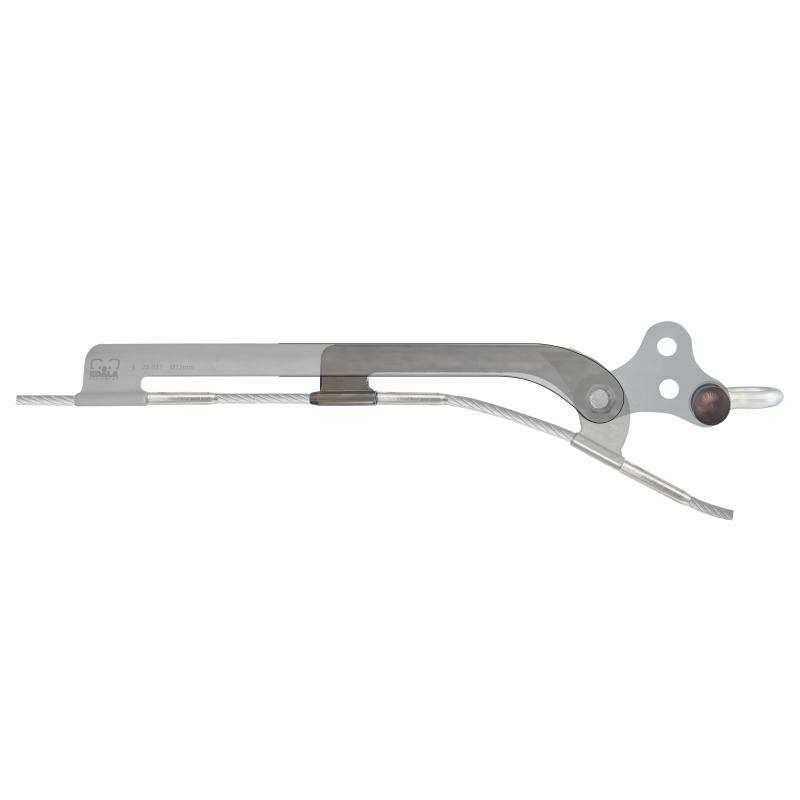

The wire rope will be maintained with two 65 mm (2,56 in) ferrules per arm.

Made for:

- Galvanized steel wire ropes, 6 x 7 Ø12 mm (0,47 in) textile core, Lang Forming,

- Galvanized steel wire ropes, 19 x 7 Ø12 mm (0,47 in) metallic core, anti-rotating,

- Swaged galvanized steel wire ropes, 6 x 26 Ø12 mm (0,47 in) metallic core.

Fixing method : on a shackle.

Material : stainless steel.

Weight : 1,560 kg (3,44 lbs).

Available for Ø1/2 inch wire ropes, please contact us.

Price per item (without fixing accessory nor ferrule).

 Designed and manufactured in the French Alps.
