Big Glue-in Anchor (Climbing Technology)

QU107
$19.04

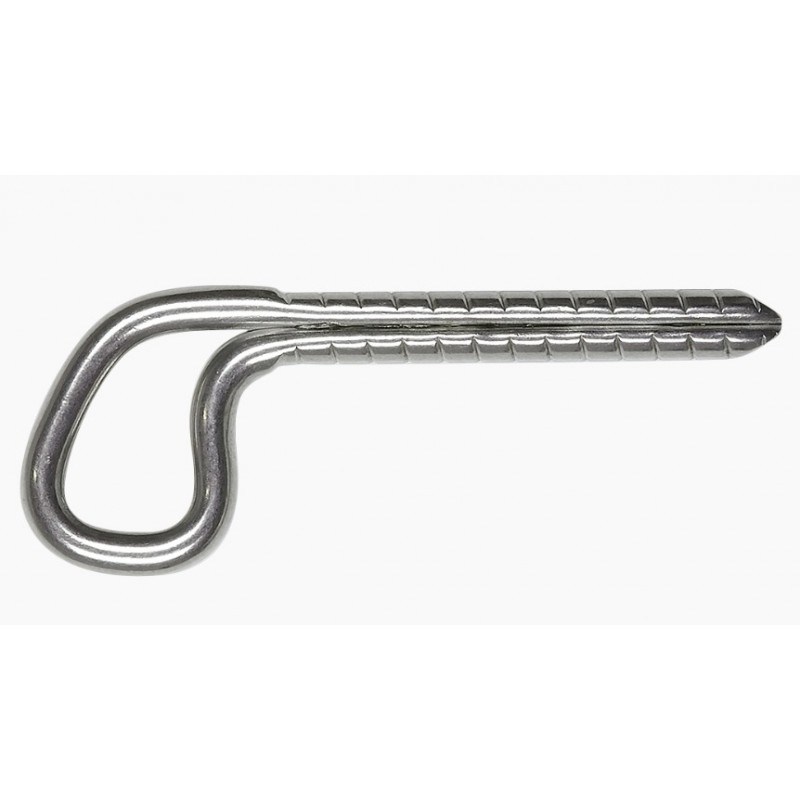

"Big Glue In Anchor" stainless steel anchor to be installed with chemical resin for use with heavy workload.

Ideal for use in a corrosive environment.

Material : AISI 304 stainless steel.

The resin sticks to the bolt and the sides of the hole, preventing expansion stress and considerably increasing the strength.

Breaking load in traction: 50 kN.

Breaking load in extraction: 50 kN.

Complies with EN 959: 2007 and EN 795: 1996-A1.

Drilling diameter : 16 mm (0,62 in).

Drilling depth : 110 mm (4,33 in).

Weight : 192 g (0,42 lb).

Price per item.
