PACK RAUMER 160

Multi-function anchor

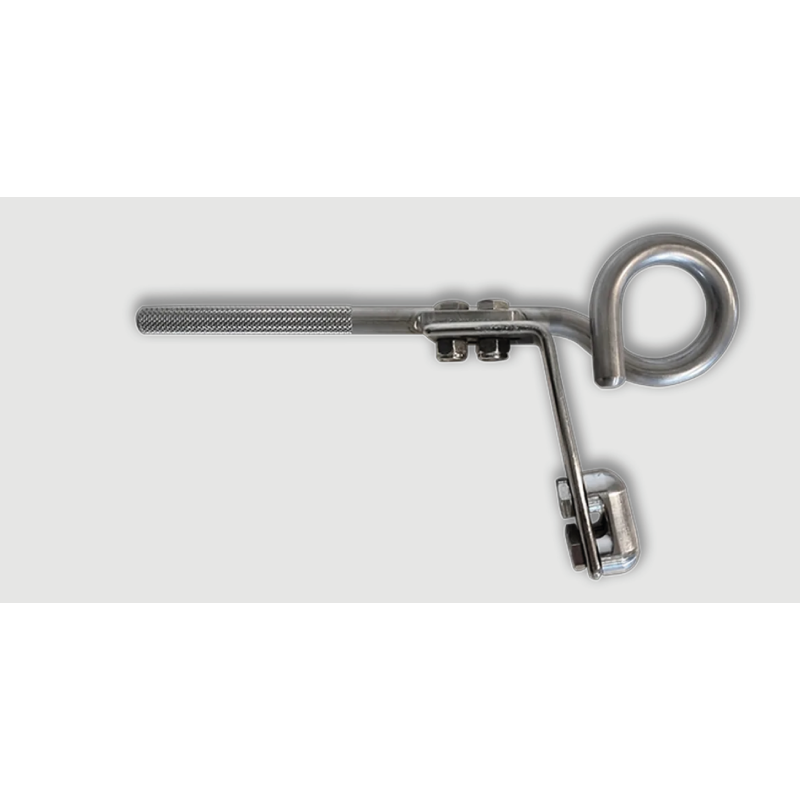

Raumer 160 pigtail bar assembled with iPack 4 80°. All-in-one anchoring for the creation of a continuous life line in Via Ferrata.

Assembly procedure

Installation on non-friable rock. Drill to diameter 18 perpendicular to the wall while respecting a minimum depth of 160mm.

Clean the hole with a metal swab. Remove dust by blowing with a pear. Fill 2/3 full with a chemical seal. Position the bar with a slight rotation.

Installation advice

Wait 24 hours before use.

The lifespan of the material depends on the quality of the support and the environment.

A minimum check every 12 months is required.
