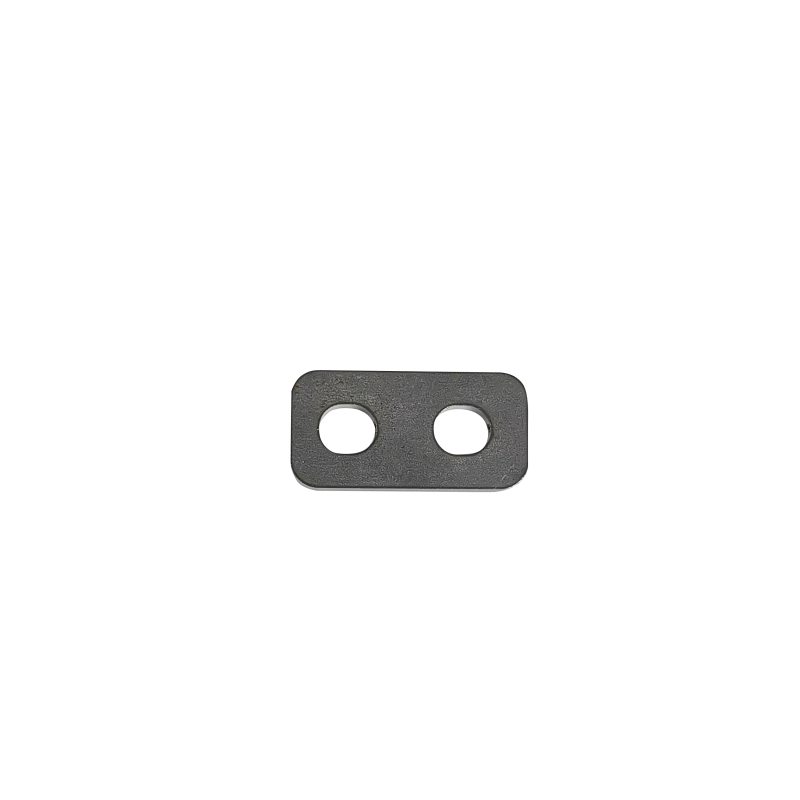

Wedge

Short description text : Allow installation on any kind of open eye-bolt anchorage.

Material : 316L Stainless steel

Working Load Limit WLL: 20 kN.

Breaking load: 40 kN.

Weight : 45 g (0,10 lb).

INSTALLATION

1. Check the condition of the anchor bracket and the cable.

2. Install the wedge between the open eye-bolt and the IPack with the 2 stainless steel A4 bolts + 2 Nylstop nuts on the open eye-bolt anchor.

Put one or two 6mm wedge(s) to allow the rope to pass between the Ipack and the anchorage.

ADVICE

Important : the rope must pass easily.

The durability of the gear depends on the quality of the mount and environmental conditions.

Deterioration can be affected in certain specific conditions (snow, ice, rockfall...).

A detailed inspection must be carried out at least once every 12 months.
